A Splice Connection Macro can be created between a beam & a beam or a beam and a column. Placing the mouse cursor over the Splice Connection Macro will reveal the tooltip describing the scope and steps of this macro. How to use it Click "Splice" under splice connections category. Pick the Top Column. Pick the Second Column. The […]
Before analysing the building you must ensure that Project Parameters, Load Combinations, Wind & Storey Loads and Materials have been correctly defined. These settings are all located on the Pre-Analysis tab of the “Building Analysis” dialog. They are explained in detail in the following sections : Materials Project Settings / Parameters Load Combinations Wind and […]

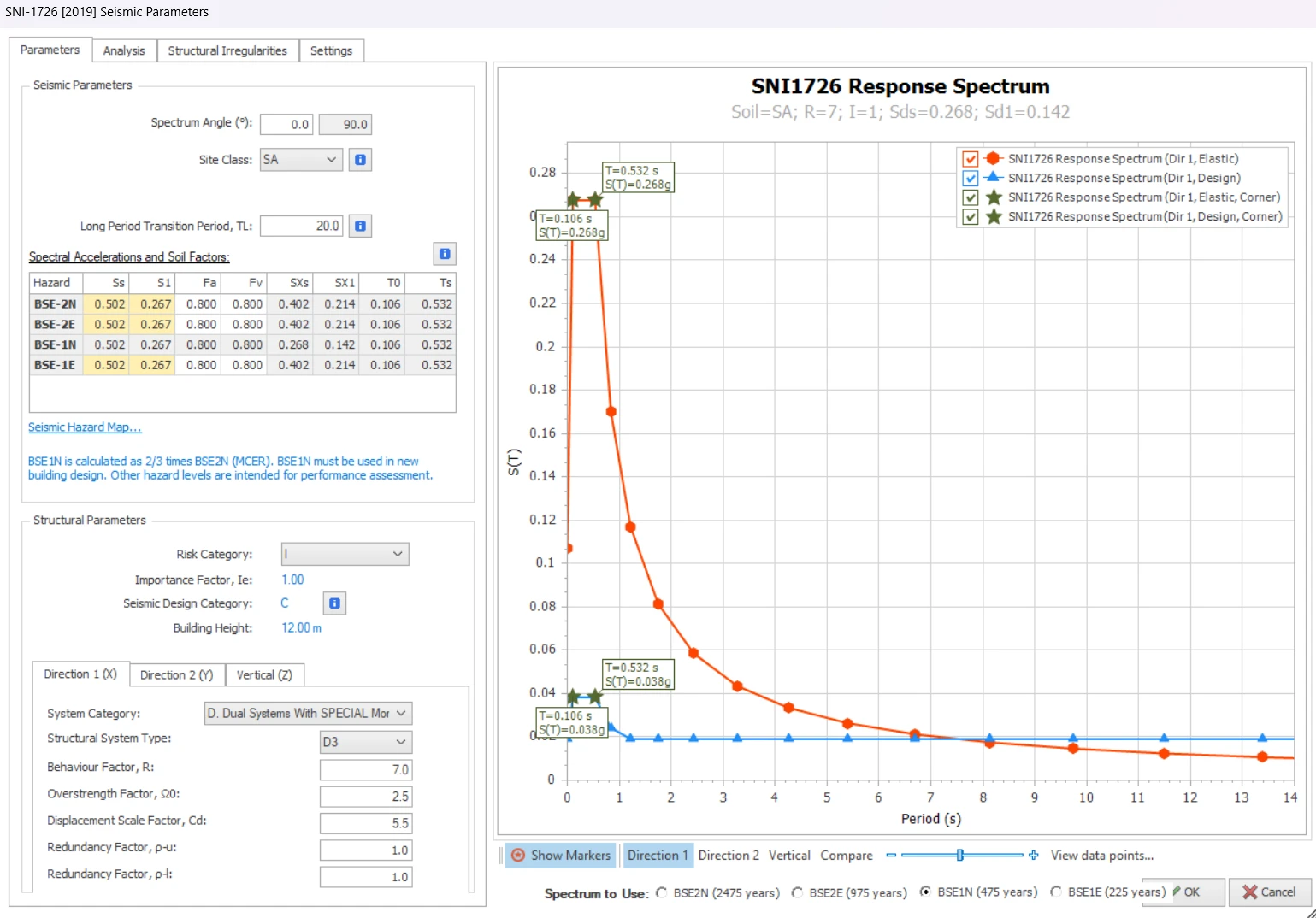

ProtaStructure can now calculate seismic loads in accordance with Indonesia (SNI 1726 :2019 ) seismic code, which is an adaptation of ASCE07. Go to Building Analysis dialog > Pre-analysis tab : Click on Settings Center > Code section will be shown > Pick Earthquake Code Click Seismic Parameter to access the Seismic Parameters & Settings Click the i icon for more information and guidance on the parameter. […]

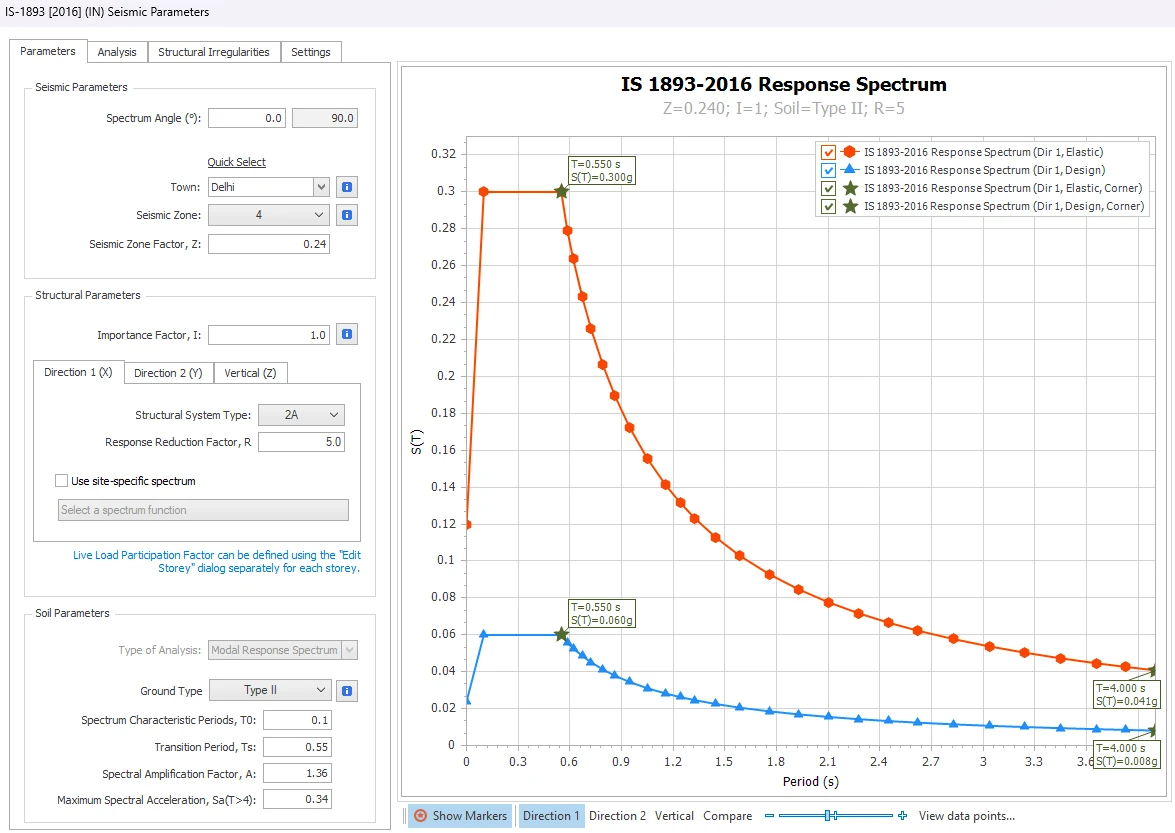

ProtaStructure can calculate seismic loads in accordance with India (IS 1893-2016) seismic code, which covers the key parts of IS codes. Click on Settings Center > Code section will be shown > Pick Earthquake Code Click Seismic Parameter to access the Seismic Parameters & Settings Click the i icon for more information and guidance on the parameter. Please ensure to also read this article Seismic […]
ProtaStructure can calculate seismic loads in accordance with Philippines (NSCP2015) seismic code, which is an adaptation of UBC97. Go to Building Analysis dialog > Pre-analysis tab : Click on Settings Center > Code section will be shown > Pick Earthquake Code Click Seismic Parameter to access the Seismic Parameters & settings Click the i icon for more information […]

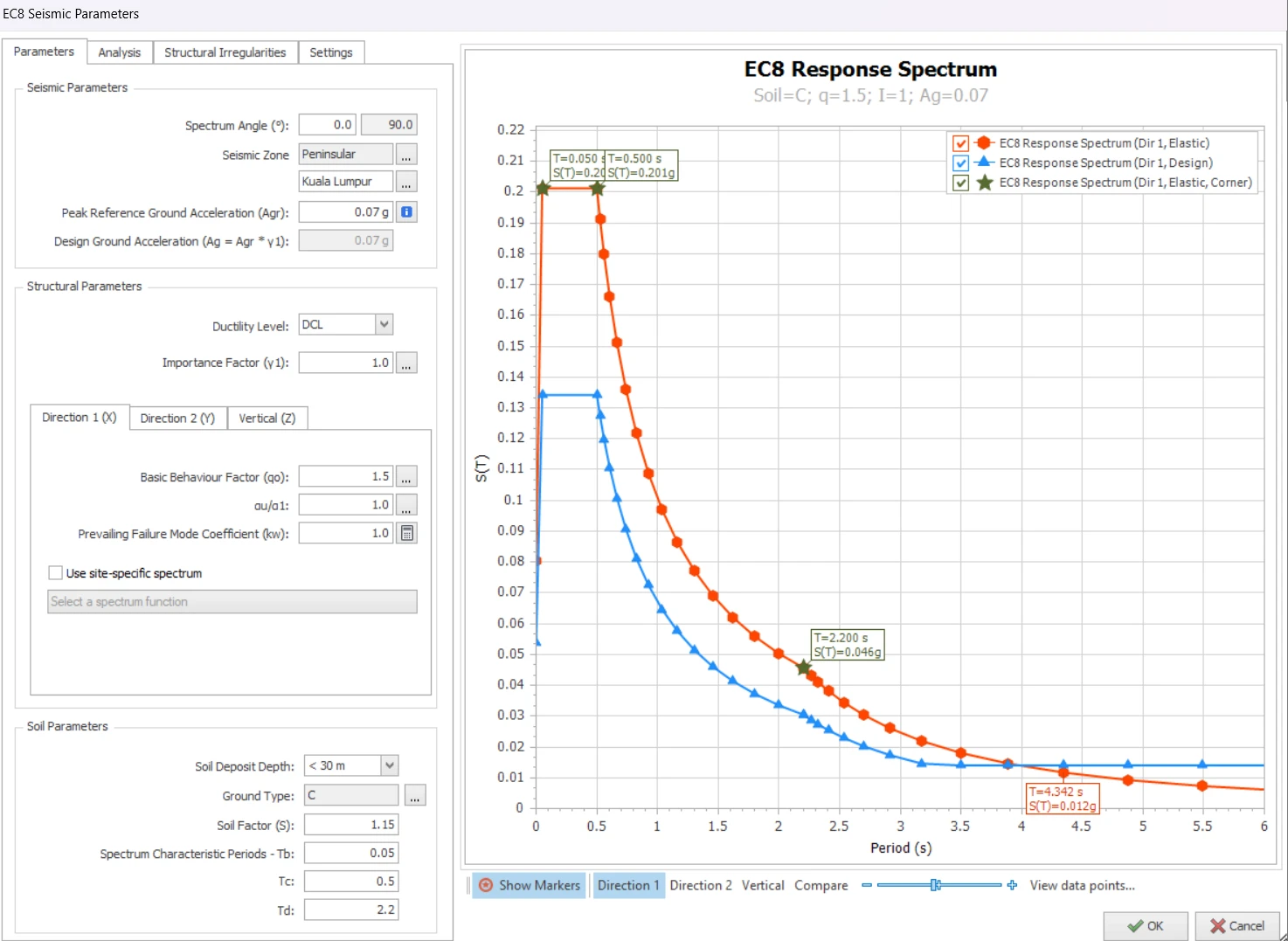

ProtaStructure can now calculate seismic loads in accordance EuroCode 8. Country specific requirements of the following National Annex have been implemented : MS EN 1998-1 : 2015 (Malaysia National Annex) SS EN 1998-1 : 2013 (Singapore National Annex) Go to Building Analysis dialog > Pre-analysis tab : Click on Settings Center > Code section will be shown > Pick Earthquake Code Click Seismic Parameter to access […]
Lateral loads can be applied at each floor level of the analysis model, or individual Column/Wall nodes (Joint loads that can be assigned to individual columns/walls are not limited only to lateral loads). You can use the “Wind and Storey Load” to define horizontal loads applied at each floor level. For example, if the wind […]

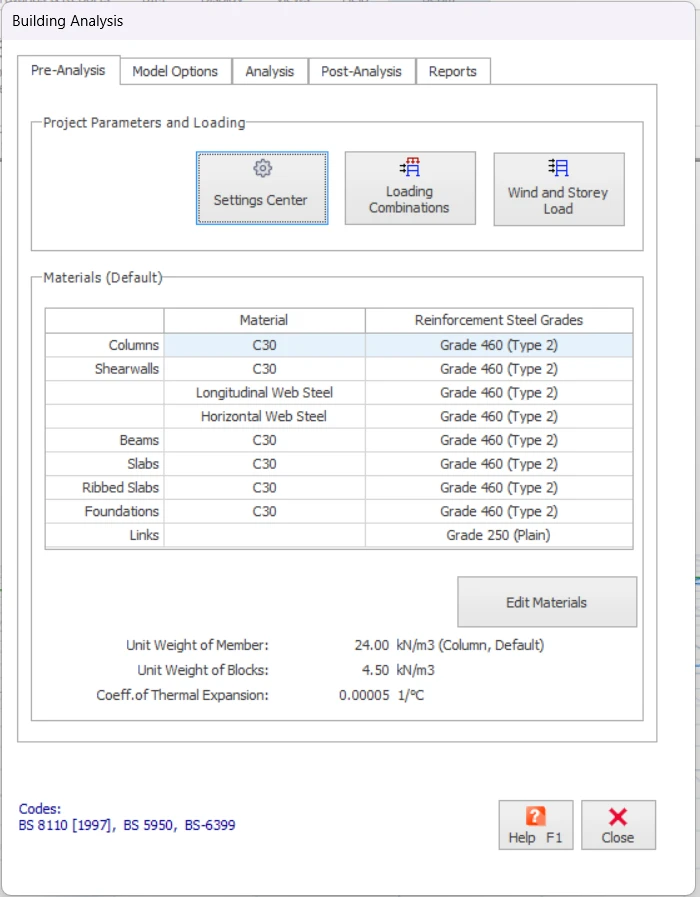

Pre-Analysis Tab Concrete and steel grades are assigned to each member type from the “ Pre-Analysis ” tab page in the “ Building Analysis ” Form. Unit Weight of Member Unit Weight of Concrete given in this field is used for calculating the self-weight of columns, walls, beams, slabs and foundations. Unit Weight of Blocks Unit Weight of Blocks is […]
General You will learn how to incorporate the basic seismic loading into your model. You will know how to view & check the seismic mode shapes It is very important that the user to refer the relevant earthquake code for detail explanations of the seismic analysis and design. This article uses EuroCode 8 for illustration. The […]

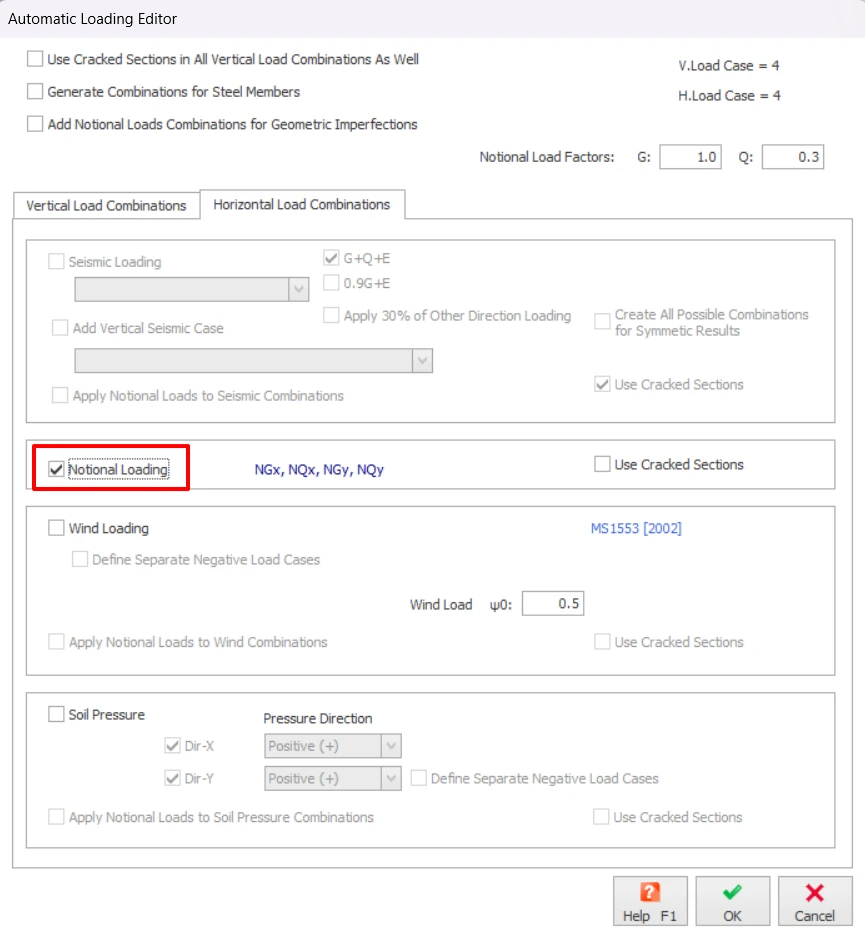

Create Notional Horizontal Load Cases and Combination To add Notional Load to the model, the Notional Load Cases and Load Combinations shall be generated: Analysis > Building Analysis > Pre-Analysis > Loading Combinations> Loading Generator > Horizontal Load Combinations, check the Notional Loading. For certain code of practice, example EuroCode, you can add notional horizontal load […]
