Engineering Utilities For Quick Engineering Design Calculation
General
The handy Engineering Utilities can be used for quick engineering design.
This includes a calculator for concrete cover, rebar anchorage & lap
lengths; simple beam analysis tool to calculate maximum shear, moment and
deflections; hydraulics calculator for uniform flow depth & gradually
varied flow, etc.
This includes a calculator for concrete cover, rebar anchorage & lap
lengths; simple beam analysis tool to calculate maximum shear, moment and
deflections; hydraulics calculator for uniform flow depth & gradually
varied flow, etc.
Navigation
- Go to Design Library (top dropdown menu) → Engineering Utilities
Layout
The following is the complete list of the modules and their
functions :
functions :
- Cover and Anchorage Calculator
- Calculates
concrete cover, anchorage and lap lengths - Refer to this design guide for details : Rebar Anchorage and Lap Lengths
- Hook Length Calculator
- Calculates
rebar bending, extension & total hook length - Rebar Area Calculator
- Calculates
provided steel area per meter (e.g. 10H16 @ 100mm spacing) based on required
steal area - Unit Conversion
- Converts
common engineering units, eg. Pascal
(Pa) à

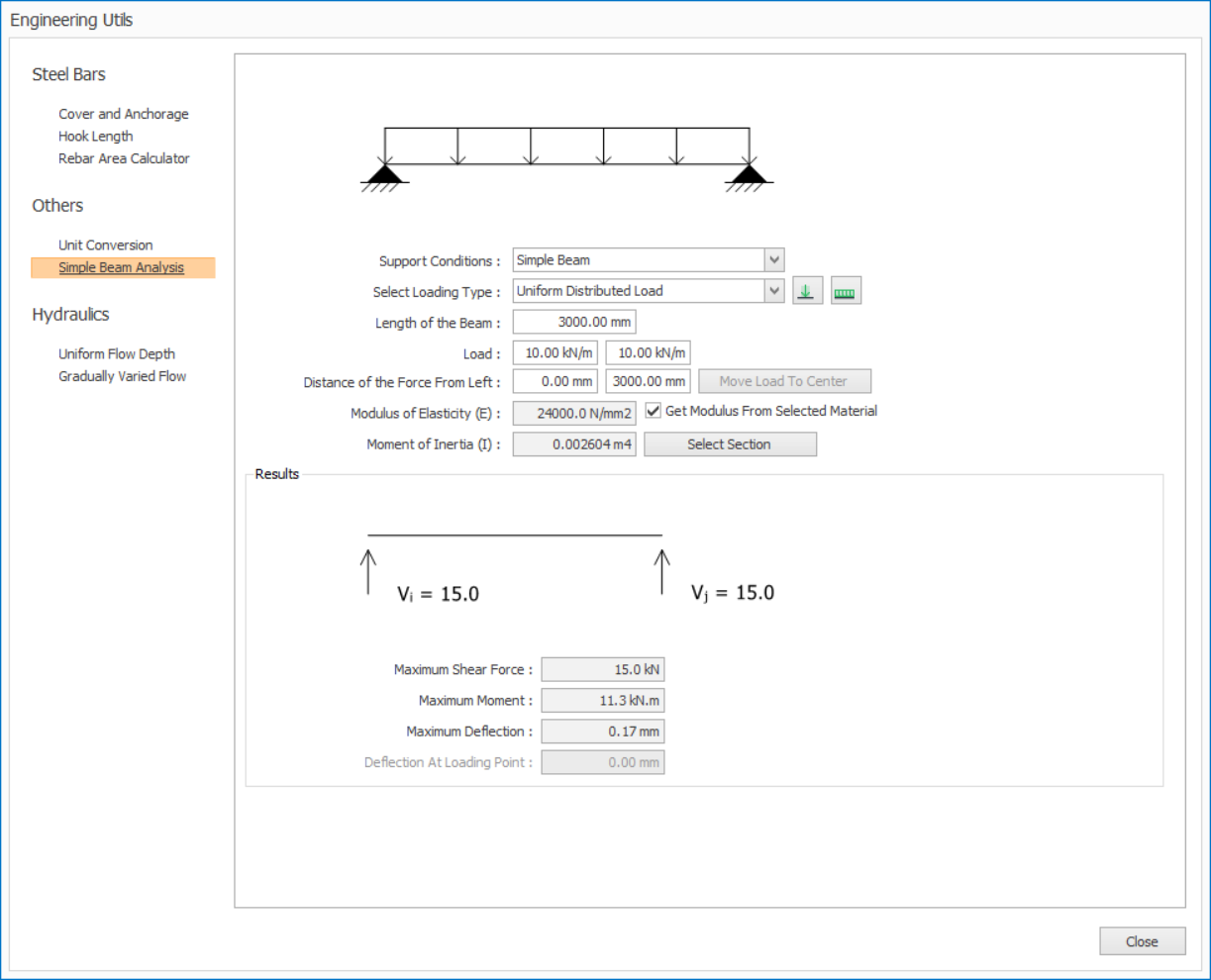

Kilopound Per Square Inch (ksi) - Simple Beam Analysis
- Calculates
maximum shear, moment & deflection for single span beam with various

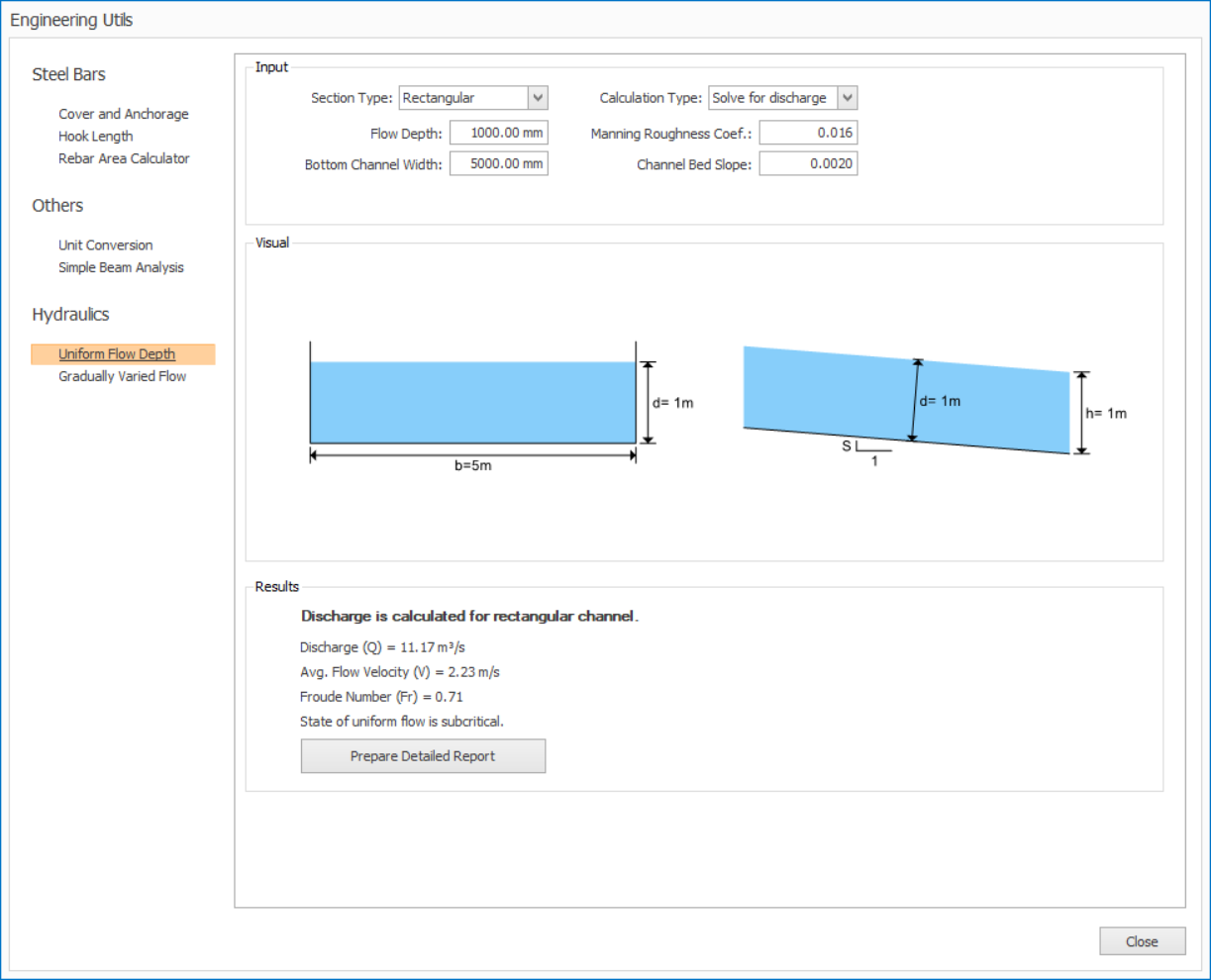

support condition such as simple, cantilever & fixed end - Uniform Flow Depth (Hydraulics)
- Solves for
discharge, flow depth, channel width or channel slope for rectangular,
trapezoidal or circular channels under ‘uniform flow depth’ condition - Gradually Varied Flow (Hydraulics)
- Solves for
discharge, flow depth, channel width or channel slope for rectangular,
trapezoidal or circular channels under ‘gradually varied flow’ condition
